Ultrasonic Flaw Detector Portable Ultrasonic Flaw Detector Testing Equipment with ARM and FPGA Multi-Functional Flaw Detector for Iron and Steel Metallurgy (Model AMT219)

AMTAST Ultrasonic Flaw Detector (Model AMT219)Specifications:1. Measuring Range: 0~15000mm, at steel velocity2. Pulse Repetition Frequency: 20Hz ~ 2000Hz3. Material Velocity: 1000 ~ 20000m/s4. Pulse Repetition Frequency ranges: 20Hz ~ 2000Hz5. Dynamic range: >40dB6. System Linearity: Horizontal: +/-0.2% FSW, 7. Vertical: 0.25% FSH, Amplifier Accuracy +/-1dB.8. Resolving Power: >40dB9. Sensitivity Leavings: >50dB (Deep 200mm, Ф2 flat-bottomed hole)10. Reject (suppression): 0~80% full screen height11. Noise: less than10%12. Gate Monitors: Two independent gates controllable over entire sweep range13. Gain: 110dB max in selectable resolution 0.1, 1.0, 2.0, 6.0dB.14. Bandwidth (amplifier bandpass ): 0.2 ~ 20 MHz15. Pulse Displacement: >32dB16. Display Delay: -20 ~ 3400µs17. Probe Delay/Zero Offset : 0 ~ 99.99µs18. Test Modes: Pulse echo, dual element and thru-transmission19. Pulser: Tunable Wave Pulser20. Pulse Energy: 100V, 200V, 250V, 300V, 500V selectable21. Rectification: Positive half wave, negative half wave, full wave, RF22. Units: Inch or millimeter23. Transducer Connections: BNC or LEMO24. Power Requirements: AC Mains 100~240 VAC, 50~60Hz25. Operating Temperature: -10 ~ 50°C, Storage Temperature: -30 ~ 50°C

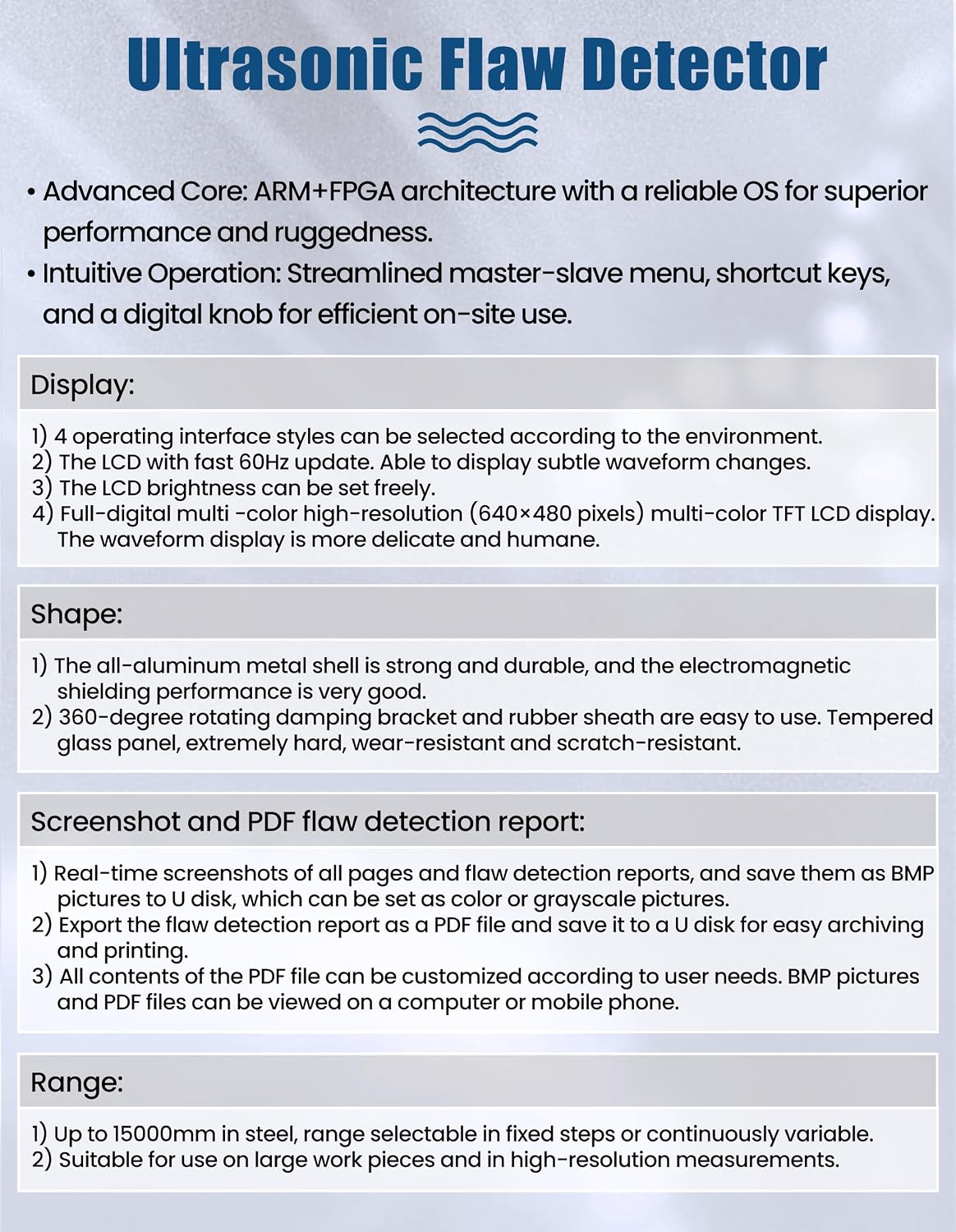

• 𝐑𝐨𝐛𝐮𝐬𝐭 𝐈𝐧𝐭𝐞𝐫𝐟𝐚𝐜𝐞 𝐃𝐞𝐬𝐢𝐠𝐧 – This ultrasonic flaw detector offers a rugged all-aluminum shell and scratch-resistant glass. Its 640×480 color TFT LCD with 60Hz refresh ensures clear waveform display. With quick-access keys, a rotary knob, and an ergonomic rotating stand, it provides intuitive one-handed control.
• 𝐀𝐝𝐯𝐚𝐧𝐜𝐞𝐝 𝐓𝐫𝐚𝐧𝐬𝐦𝐢𝐭/𝐑𝐞𝐜𝐞𝐢𝐯𝐞 𝐒𝐲𝐬𝐭𝐞𝐦 – This portable ultrasonic flaw detector features a fully adjustable transmitter for perfect probe matching. Its high-performance receiver uses a 320MHz/16-bit AD converter with 0.2-20MHz bandwidth and 0-110dB gain for precise signal capture.
• 𝐒𝐦𝐚𝐫𝐭 𝐌𝐞𝐚𝐬𝐮𝐫𝐞𝐦𝐞𝐧𝐭 𝐓𝐨𝐨𝐥𝐬 – As a multi-functional flaw detector, it offers a large measurement range and dual independent gates for accurate thickness and flaw sizing. Gates are fully adjustable with alarm functions for reliable inspection.
• 𝐄𝐟𝐟𝐢𝐜𝐢𝐞𝐧𝐭 𝐃𝐚𝐭𝐚 𝐇𝐚𝐧𝐝𝐥𝐢𝐧𝐠 – This portable UT flaw detector stores 500 setups and 1000 reports internally. It captures screen images and generates customizable PDF reports. All data can be transferred via USB for easy management and sharing.
• 𝐏𝐫𝐨𝐜𝐞𝐬𝐬 𝐑𝐞𝐜𝐨𝐫𝐝𝐢𝐧𝐠 𝐅𝐞𝐚𝐭𝐮𝐫𝐞 – Functioning as a multi-functional defect detection and analysis tool, it records inspection videos (internal/USB storage). Video playback with controls allows for detailed review, analysis, and training purposes.
